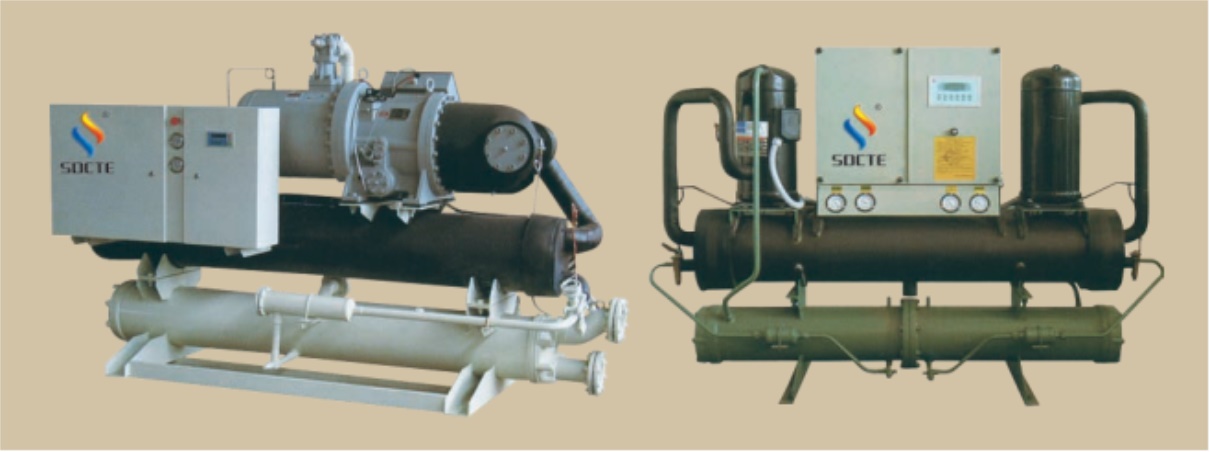

Water-cooled chiller

Water cooled chiller has the advantages of high efficiency, low noise, reasonable structure, simple operation, safe operation and convenient installation and maintenance. It is widely used in comfort central air conditioning system of public facilities such as hotels, shopping malls, office buildings, exhibition halls, airports, gymnasiums, etc.
水冷冷水机组
industrial water cooled
industrial water cooled heat pump
refrigeration chiller
Product Description
 一、Product Description
    Water cooled chillers are widely used in the comfort central air conditioning system of hotels, shopping malls, office buildings, exhibition halls, airports, gymnasiums and other public facilities.
  CTESL series water-cooled chiller is a mature and shaped product developed by Shandong Zhongkeneng Artificial Environment Co., Ltd. on the basis of fully absorbing the latest developments in international and domestic refrigeration and air-conditioning fields. The unit is designed and manufactured in strict accordance with international industry standards. The unit adopts high-quality, high-reliability compressors, refrigerant system control components and computer control components produced by world-renowned manufacturers. Through reasonable system matching and structural design, the unit has high energy efficiency ratio, stable performance, reliable quality and Low noise, no pollution to the outdoor environment and many other advantages.

二、Features
1. Wide selection
  The refrigeration capacity of this series of units ranges from 75KW to 3350KW.There are a variety of specifications to choose from.Each type of unit has two types of control methods:ordinary computer control and luxury computer control.And other non-standard products.
  a Single compressor series
  b Double compressor series(single evaporator type)
  c Four compressor series
2. Rigorous design and excellent options
  Fully consider the domestic actual operating conditions,carry out reasonable system configuration,and optimize the selection of each component to minimize the energy loss of each refrigeration component and improve the efficiency of the unit.The compressors,refrigeration system accessories,computers and electronic control components used by the unit are imported from famous foreign companies,with good quality,accurate control,reliable performance,strong adaptability,simple maintenance and high operating efficiency.
3. Complete protection,stable and reliable operation
  The units are equipped with protection devices such as temperature protection switches,overload relays,high and low voltage safety switches,drying filters,antifreeze switches and delayed start,to ensure the safety of the host,and easy maintenance and maintenance.According to the fuzzy adjustment,the user load is dynamically detected,the unit operation energy adjustment is performed,and the load is dynamically matched.Complete operation monitoring and fault diagnosis functions ensure the safe and reliable operation of the unit.
4. Advanced control and reliable performance
  (1)Adopt advanced microcomputer control,friendly operation interface;High degree of automation and complete functions,can realize unit start-stop program management,timing control,water pump management,full-function fault alarm and fault self-diagnostic functions,etc.Equipped with RS485/RS232 communication interface,it is convenient for users to realize centralized monitoring and remote monitoring of the unit.
  (2)The microcomputer controller has an intelligent control function,and has a number of automatic control functions such as fault self-diagnosis,energy management,antifreeze detection,and operation mode detection to ensure that the unit operates efficiently.At the same time,the unit is also equipped with multiple safety protection devices such as high and low pressure,anti-freezing,overload protection,and lack of phase inversion to ensure the unit's safe operation.
5. Simple installation and easy maintenance management
  (1)The machine has completed the assembly of pipes and electrical control in the factory,and the installation and commissioning of the circuit.It only needs to be connected to the system of power,cooling water and chilled water on the site and it can be put into operation.
  (2)Unit control is flexible,both on-site and remote control.
  (3)The unit adopts an open structure,without any panels,large maintenance space,convenient access for personnel,and convenient maintenance.
三、Parameters of Water Cooled Chiller


Model

CTESL

430

480

560

600

710

800

900

960

1120

1240

1470

1660

1840

2000

Cooling Capacity

kW

430

480

560

600

710

800

900

960

1120

1204

1470

1660

1840

2000

Power Source

3Phase 380V 50Hz

Energy Control

25%100%

12.5%100%

Compressor

Type

Semi closed screw type

Quantity

set

1

1

1

1

1

1

1

2

2

2

2

2

2

2

Input Power

kW

94.5

96

115

122

142

161

182

193

227

250

301

336

376

406

Refrigerant

capacityR22

kg

76

85

100

107

126

142

160

171

199

214

261

295

327

356



Evaporator

Type

Shell and tube heat exchanger

Water side resistance

kPa

44

45

46

46

46

46

46

45

46

46

45

46

46

46

Fouling Factor

m2℃/kW

0.086

Nozzle Specification

mm

DN

100

DN

125

DN

125

DN

125

DN

125

DN

125

DN125

DN150

DN150

DN150

DN150

DN200

DN200

DN200

Water Flow

m3/h

74

83

96

103

122

138

155

165

193

207

253

285

316

344



Condenser

Type

Shell and tube heat exchanger

Water side resistance

kPa

44

45

46

46

46

46

46

45

46

46

45

46

46

46

Fouling Factor

m2℃/kW

0.086

Nozzle Specification

mm

DN

100

DN125

DN125

DN125

DN125

DN125

DN125

DN150

DN150

DN150

DN150

DN200

DN200

DN200

Water Flow

m3/h

90

99

116

124

147

165

186

198

232

250

305

343

381

414



Dimension

Length

mm

3200

3200

3635

3635

3635

3720

3720

3860

3860

4360

4360

4650

4750

4750

Width

mm

1200

1200

1310

1310

1310

1415

1415

1395

1395

1395

1395

1650

1670

1670

Height

mm

1630

1630

1810

1810

1810

2055

2055

2020

2020

2020

2020

2350

2380

2380

Weight

Standard Type

kg

2640

2850

3250

3550

3750

3800

3850

3890

3950

4210

6090

6500

7420

7500

Noise isolation type

2710

2980

3325

3630

3835

3890

3945

4050

4100

4315

6210

6625

7550

7620

Noise

Standard Type

dBA

70

72

72

73

73

74

75

76

78

78

79

80

80

80

Noise isolation type

61

61

61

62

64

65

66

68

69

69

70

71

71

71

If you are interested in our water cooled chiller, please feel free to contact us:

Tel+86-530-7355311

E-mailzhangteng@c-jsec.com

              info@c-jsec.com

Fax+86-530-7355311

AddHeze City, Shandong Province, China
